POLYCAST DG0644H Class B Spacing 5/8" Fiberglass BAR 5.25" x 24" Grate

POLYCAST DG0644H Class B Spacing 5/8" Fiberglass BAR 5.25" x 24" Grate

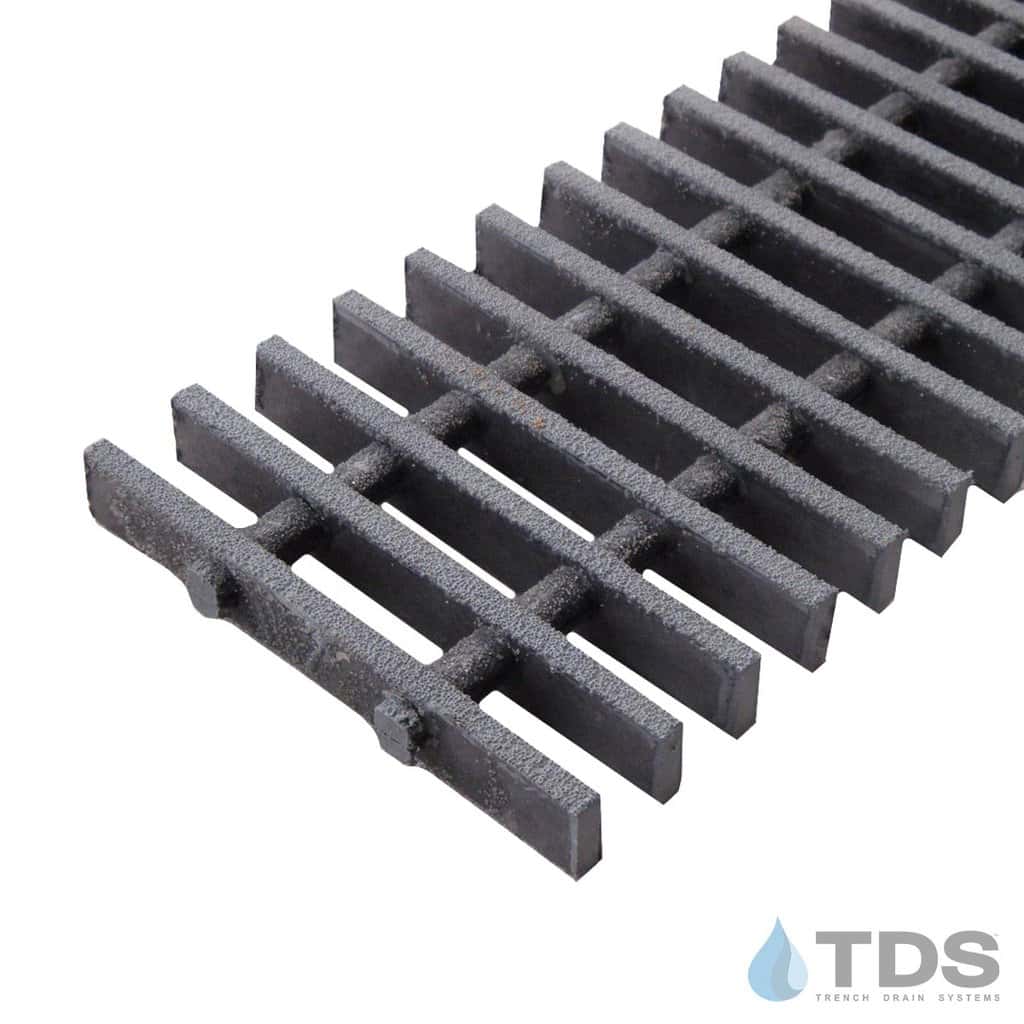

  • DG0644-Polycast-fiberglass-bar-grate-TDSdrains
1 1

Trench Drain Grates

DG0644H

$108.75 USD
$108.75 USD
Sale Sold out
View full details

Additional Information

  • Grate Width: 5.25" for Hubbell Polycast
  • Grate Height: 0.75"
  • Product Type: Channel Grate, Grate
  • Grate Material / Color / Finish: Fiberglass
  • Manufacturer: Hubbell - POLYCAST
  • System: POLYCAST 500, POLYCAST 600
  • Grate Load Class: Class B
  • Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl Ester
  • Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External

Description

Actual Dimensions: 0.75″ [19mm] x 5.188″ [132mm] x 23.875″ [606mm]

Large project? Request a Quote

Fiberglass FRP grates designed to fit the TDS SS600 Series drain and the POLYCAST 500 and 600 Series channel drain system and others. Normally used in areas where extreme chemical resistance is needed but with no heavy loads.  Separation between bars is 0.63".  Gritted top non-slip surface.

Locking device not included

Specification Sheet

POLYCAST® 600 locking device (4 per grate) for DG0644H

POLYCAST® 700 locking device (4 per grate) for DG0644H
