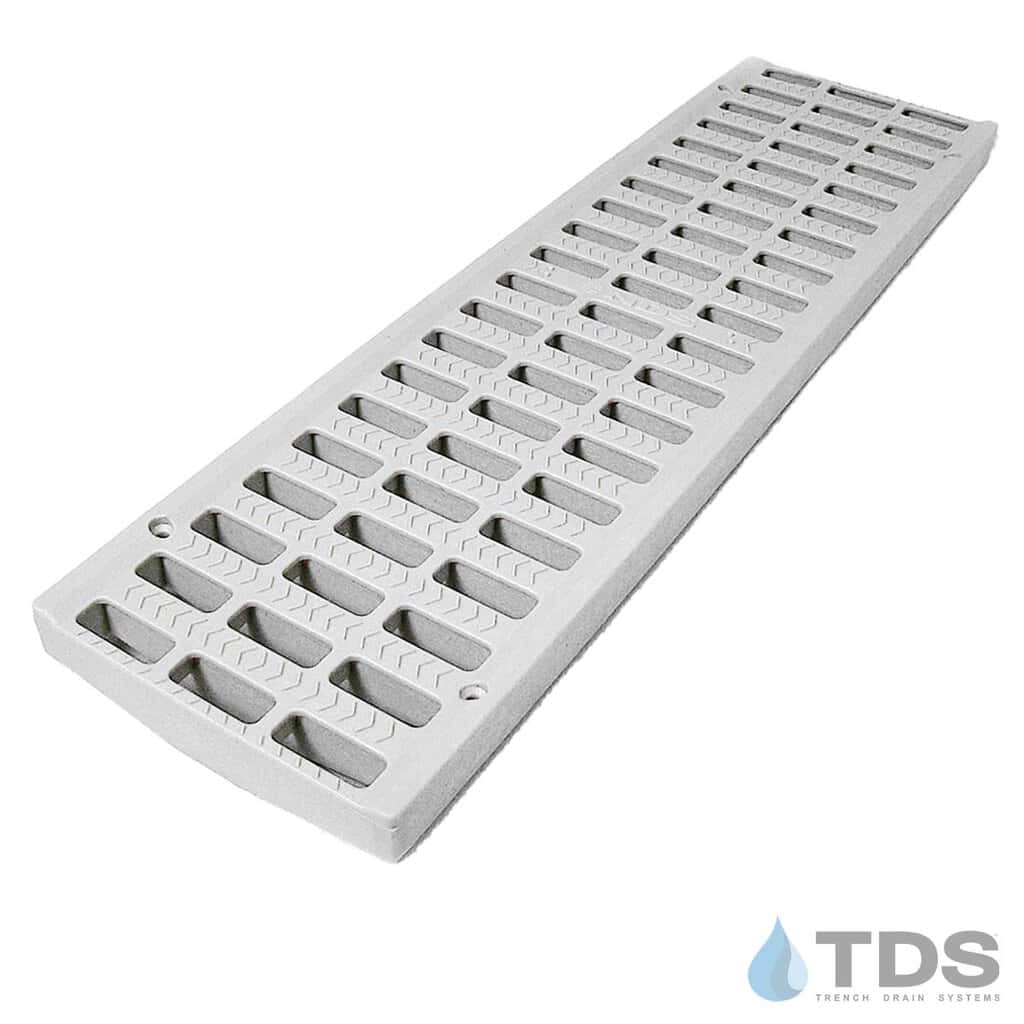

NDS® 5″ Pro Series 5 plastic channel grates have UV inhibitors in the grates to prevent fading and cracking from the sun. Available in six colors: white, light gray, green, black, sand and brick red. All NDS® structural Polyolefin grates are chemically resistant, rustproof, and maintenance-free.
- Structural foam Polyolefin light traffic channel grate
- Open surface area 25.12 square inch/foot
- 32.91 GPM per foot
- Requires 4 #829 Screws (not included)
- ADA Compliant / Heel Proof
- Recommended for medium-duty pneumatic tire traffic.
- Autos and light trucks less than 20 mph
- Class B Load Rating: 61-175 psi
