POLYCAST DG0675HD Class D Heel-Proof ADA Compliant Transverse Slotted Ductile Iron 5.19" x 24" Grate
POLYCAST DG0675HD Class D Heel-Proof ADA Compliant Transverse Slotted Ductile Iron 5.19" x 24" Grate
Additional Information
- Grate Width: 5.25" for Hubbell Polycast
- Grate Height: 0.75"
- Weight: 15.0 lb
- Grate Material / Color / Finish: Ductile/Cast Iron - Raw
- Manufacturer: Hubbell - POLYCAST
- System: POLYCAST 500, POLYCAST 600, POLYCAST 700
- Grate Load Class: Class D
- Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl Ester
- Application: Residential, General Purpose Drainage - Interior, General Purpose Drainage - External
Description

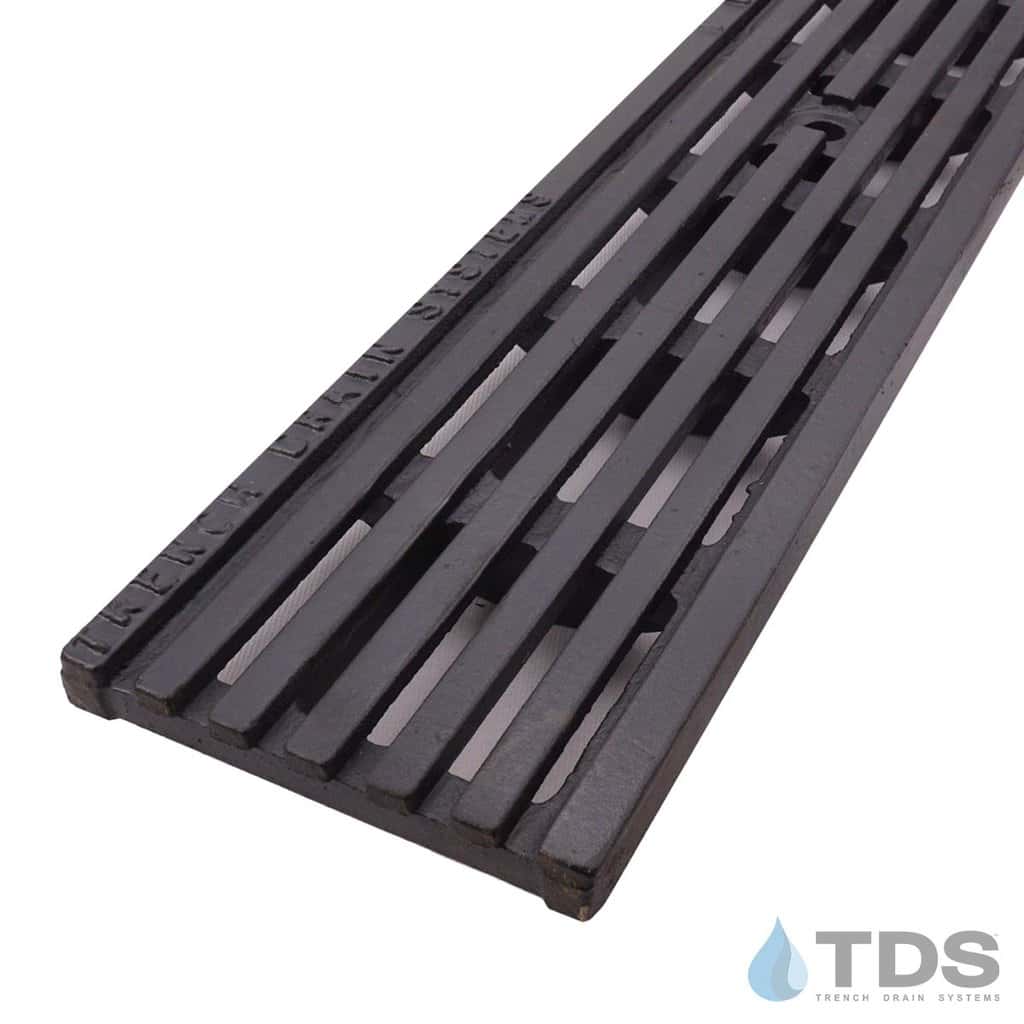

DG0675HD - Heavy-duty slotted ductile iron drainage grate is designed for use where ADA-compliance is needed in heavy traffic applications. Compatible with POLYCAST® 500, 600, and 700 Series polymer concrete trench drain systems by Hubbell Inc. This robust grate is ADA-compliant and finished with a durable black primer coating for long-lasting performance in high-traffic drainage applications.

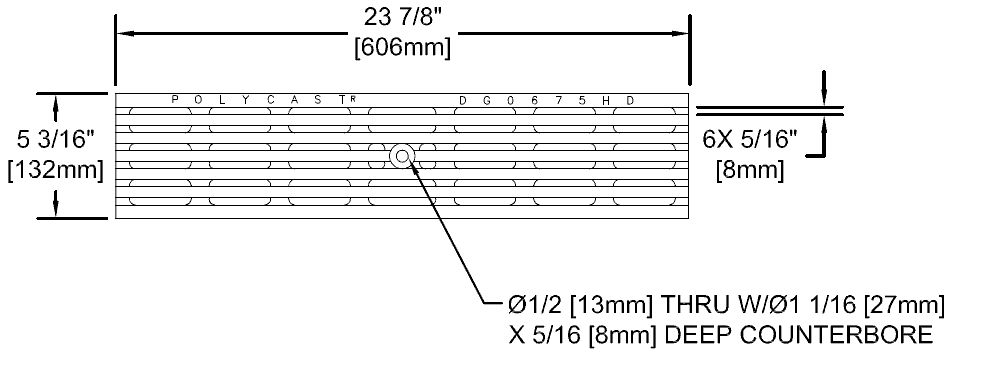

- Grate Actual Dimensions: 5.19" W x 23.88" L x .75" H
- Load Class D
- Load Class E - when mounted in Duraguard HDPE frame
- Load Class F - when mounted in Hardnose iron frame
Specification Sheet for DG0675HD
Locking device not included -Locking device not included. Click below on the system for the related locking device:
POLYCAST® 600 locking devices for DG0641D
POLYCAST® 700 locking devices for DG0641D
