POLYCAST DG0641D Class D Slotted Ductile Iron Grate 6" x 24" (Nominal)

POLYCAST DG0641D Class D Slotted Ductile Iron Grate 6" x 24" (Nominal)

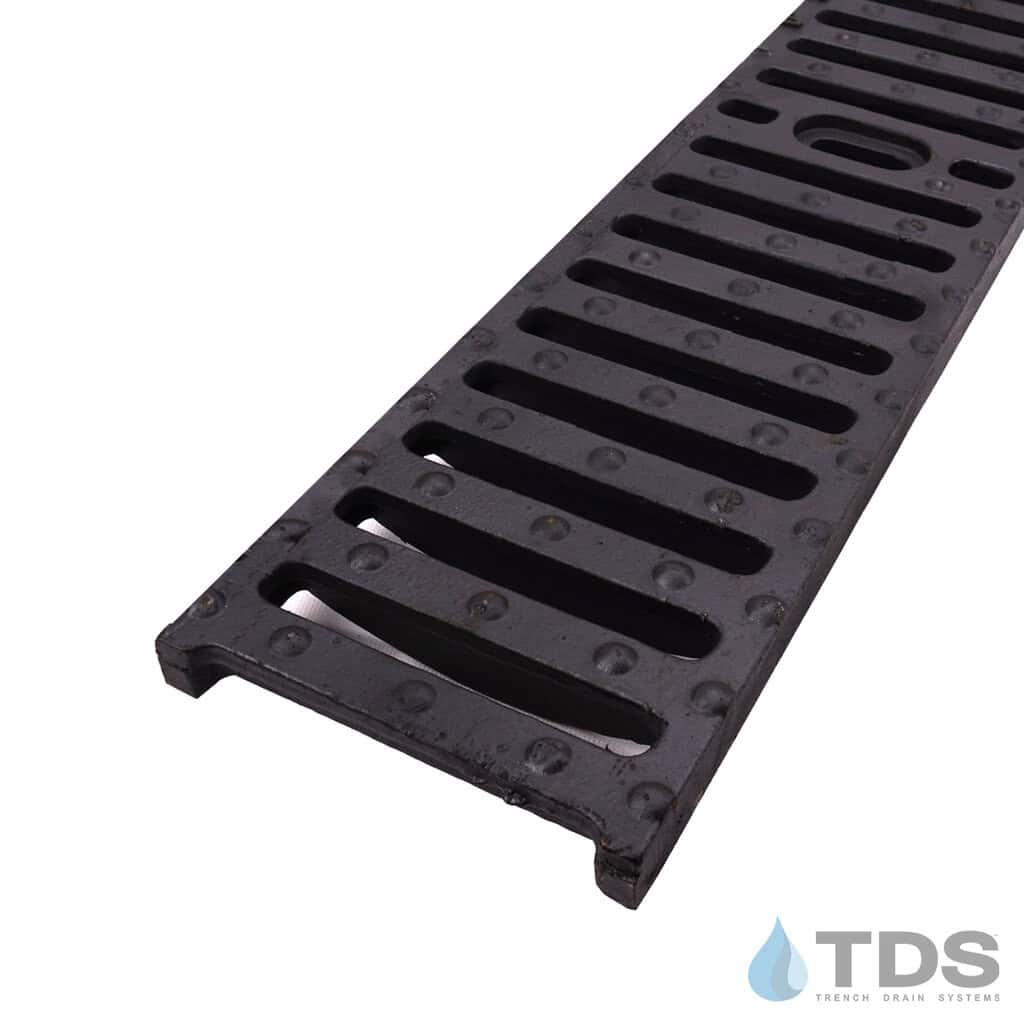

  • DG0641D Polycast Ductile Iron Slotted Grate
  • Hubbell POLYCAST DG0641D ductile iron Class D slotted grate
1 3

Trench Drain Grates

DG0641D

$49.31 USD
$49.31 USD
Sale Sold out
View full details

PRODUCT DOCUMENTATION

Additional Information

  • Grate Width: 5.25" for Hubbell Polycast
  • Grate Height: 0.75"
  • Weight: 12.0 lb
  • Grate Material / Color / Finish: Ductile/Cast Iron - Raw
  • Manufacturer: Hubbell - POLYCAST
  • System: POLYCAST 500, POLYCAST 600, POLYCAST 700
  • Grate Load Class: Class D
  • Grate Pattern: Slotted
  • Grate Pattern Style: Slotted
  • Channel Material: Polymer Concrete - Polyester, Polymer Concrete - Vinyl Ester
  • Application: General Purpose Drainage - Interior, General Purpose Drainage - External, Residential, Sports Complex - Recreational

Description

DG0641D - Heavy-duty slotted ductile iron drainage grate is designed for use in heavy traffic applications. Compatible with POLYCAST® 500, 600, and 700 Series polymer concrete trench drain systems by Hubbell Inc. This robust grate is finished with a durable black primer coating for long-lasting performance in high-traffic drainage applications.

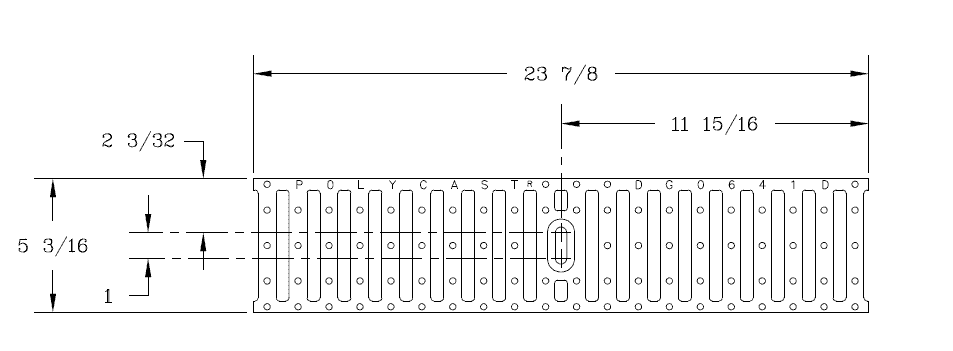

Specification Sheet for DG0641D

  • Slot size: 0.5" x 4.3"
  • Grate Actual Dimensions: 5.19" W x 23.88" L x .75" H
  • Load Class D
  • Load Class E - when mounted in Duraguard HDPE frame
  • Load Class F - when mounted in Hardnose iron frame

641D

Locking device not included. Click below on the system for the related locking device:

POLYCAST® 600 locking devices for DG0641D
POLYCAST® 700 locking devices for DG0641D

Made in America
